Goals

This guide walks you through connecting your physical robot to its digital twin on Cyberwave. By the end, you will have:

Cyberwave is in Private Beta.

Request early access to get access to the Cyberwave dashboard.

​

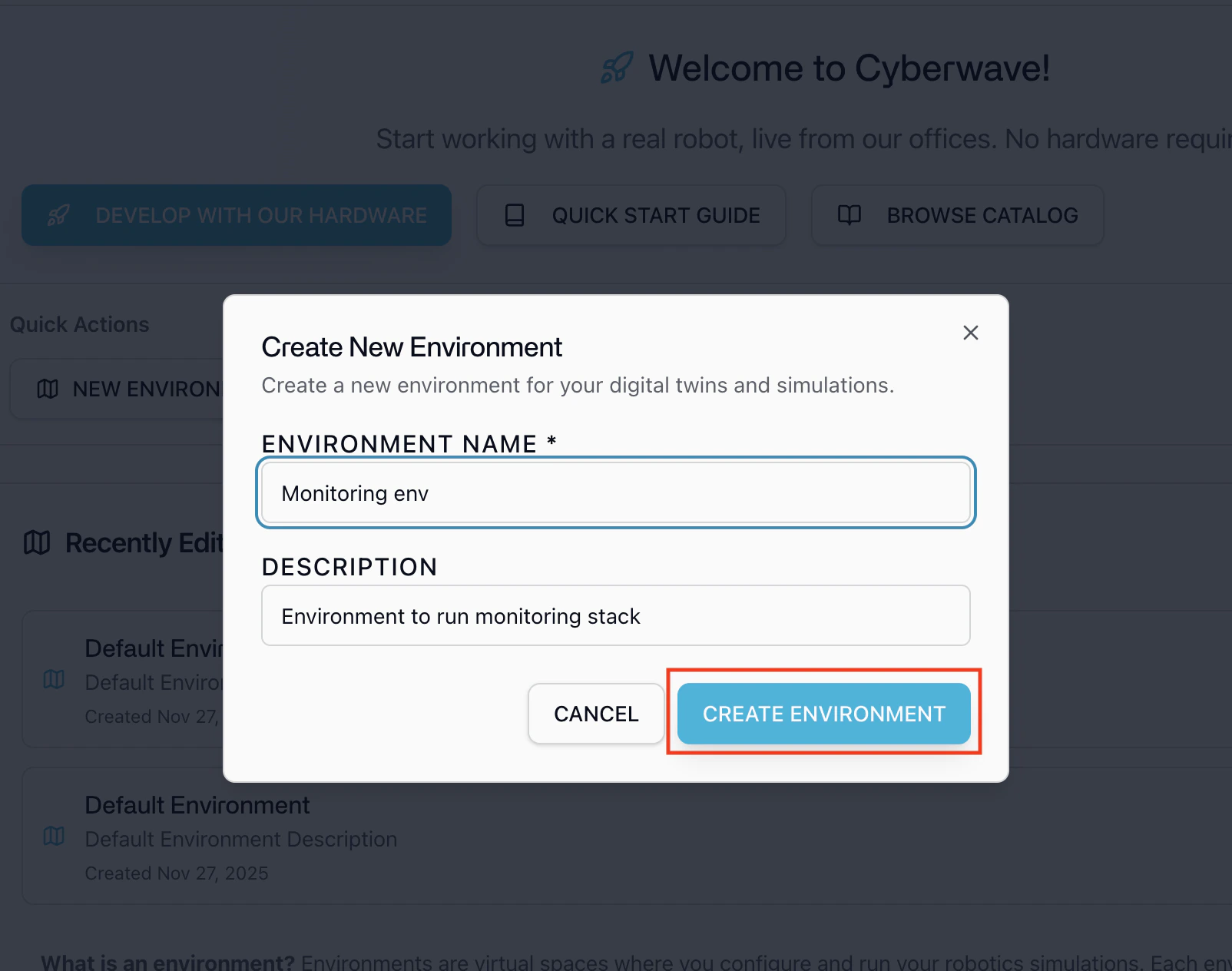

Step 1: Create an Environment

An environment is a 3D virtual space that mirrors your real-world robot setup. It’s where your digital twins live, sensors stream data, and controllers send commands, all in real time. Follow these steps to create a new environment:
  1. Go to the Cyberwave dashboard and click on New Environment.
  2. Give your environment a name and description.

​

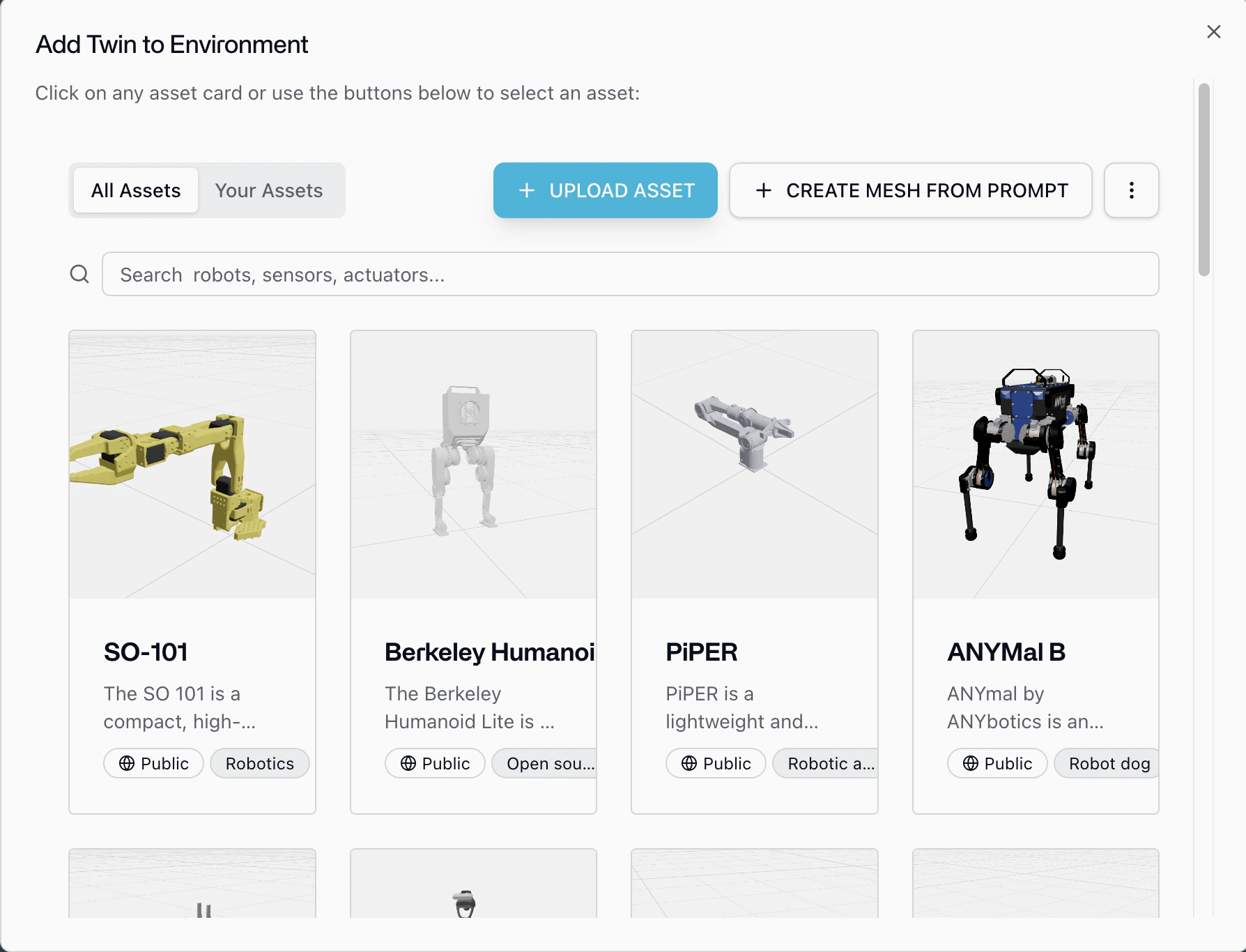

Step 2: Add Digital Twins

A digital twin is a virtual replica of your physical robot, it mirrors the robot’s structure, joints, sensors, and behavior in real time within your environment. You can add a digital twin from the Cyberwave catalog or import your own URDF file:
  1. Inside your environment, click Add from Catalog in the left panel.
  2. Browse the catalog, find your robot’s digital twin, and add it to the environment.
  3. Position the twin within your environment to match your physical setup.

Browse Catalog

Explore our robot catalog

​
Step 3: Install the Cyberwave CLI

The Cyberwave CLI is the command-line tool used to authenticate, pair, and manage your physical hardware with the Cyberwave platform.
First, SSH into your edge device:
ssh user@<edge-device-ip>
Then install the CLI:
# Install the CLI (one time setup)
curl -fsSL https://cyberwave.com/install.sh | bash

​
Step 4: Install the Edge Core

The Edge Core is the orchestrator of your Cyberwave edge components. It runs on edge devices (Raspberry Pi, Jetson, any Linux machine) and acts as the bridge between your physical hardware and the Cyberwave cloud backend.
sudo cyberwave edge install
The CLI will prompt you to log in with your Cyberwave credentials and then install the cyberwave-edge-core on your device.

​
Step 5: Pair Hardware with Digital Twin

The CLI will walk you through pairing your physical robot with its digital twin. Follow the prompts in your terminal:
  1. Select the environment you created earlier.
  2. Select the digital twin you added to that environment.
  3. The appropriate driver will be automatically installed and configured for your robot.
Your physical robot is now paired with its digital twin and syncing in real time.

​
