This tutorial walks through integrating a custom hardware device: a custom robot, an in-house prototype, or any hardware with an API, serial interface, or network protocol that isn’t already in the catalog. By the end you’ll have:
  • A custom asset created from your own URDF, visible in your workspace
  • A live digital twin spawned from that asset inside an environment
  • A working driver (a Docker container) that bridges your device’s native protocol to the twin
  • Your hardware streaming telemetry and taking commands through the platform
You build two things: an asset (the 3D and kinematic definition of the hardware) and a driver (the bridge between Cyberwave and the device). The twin, transport, UI, and data tooling already exist.

​
What you’ll need

  • The device you want to integrate (robot arm, mobile base, sensor, drone, anything with a controllable interface)
  • Knowledge of its native interface: ROS 1 / ROS 2, VDA5050, OPC UA, Modbus TCP/RTU, gRPC, REST, or raw serial / USB
  • An edge machine to run the driver on: a Raspberry Pi, a Jetson, the robot’s onboard computer, or even your Mac for local development
The CLI and Edge Core require a 64-bit architecture (arm64/aarch64) on Raspberry Pi.

​
Step 1: Prepare your URDF package

Every twin starts from an asset, and every asset starts from a URDF: the 3D meshes and kinematic model that describe your hardware. Cyberwave accepts a single ZIP archive containing one main .urdf (or .xacro) file and every file it references.
my-robot/
  urdf/
    robot.urdf
  meshes/
    base_link.stl
    arm_visual.obj
  textures/
Use relative paths inside the URDF that match your ZIP structure. If the URDF references meshes/arm_visual.obj, that file must exist at that path inside the ZIP. Cyberwave unpacks and validates the archive after you create the asset.
Don’t have a URDF yet? Most robots ship one with their ROS package, or you can export one from your CAD tool. For a sensor-only device (like a camera) you can start from a simple placeholder mesh and refine it later.

​
Sample URDF

If you want a concrete reference, download this sample drone URDF (a DJI Mini 4 Pro) and open it alongside the steps below. It defines a base_link plus four propeller links connected by continuous joints, and references its meshes by relative path.

dji-mini-4-pro.zip

A complete single-file URDF (5 links, 4 continuous joints, materials, mesh references). Unzip to read it, add your meshes/ folder, and re-zip to upload.
<robot name="dji_mini_4_pro">
  <link name="base_link">
    <visual>
      <geometry>
        <mesh filename="meshes/body.stl" scale="0.01 0.01 0.01"/>
      </geometry>
      <material name="drone_grey"/>
    </visual>
    <!-- collision + inertial omitted for brevity -->
  </link>

  <joint name="prop_front_left_joint" type="continuous">
    <parent link="base_link"/>
    <child link="prop_front_left"/>
    <origin xyz="-0.10764 0.06722 -0.00450" rpy="0 0 0"/>
    <axis xyz="-0.10884 0.23674 0.96546"/>
  </joint>
  <!-- prop_front_right, prop_back_left, prop_back_right joints follow the same pattern -->
</robot>
The downloadable sample references its meshes with package:// URIs (a ROS convention). When you build your upload ZIP, switch those to relative paths that match the archive (for example meshes/body.stl) and include the referenced .stl files in a meshes/ folder.

​
Step 2: Create the asset

Open the Upload URDF package wizard from the dashboard, then complete its three steps.
1

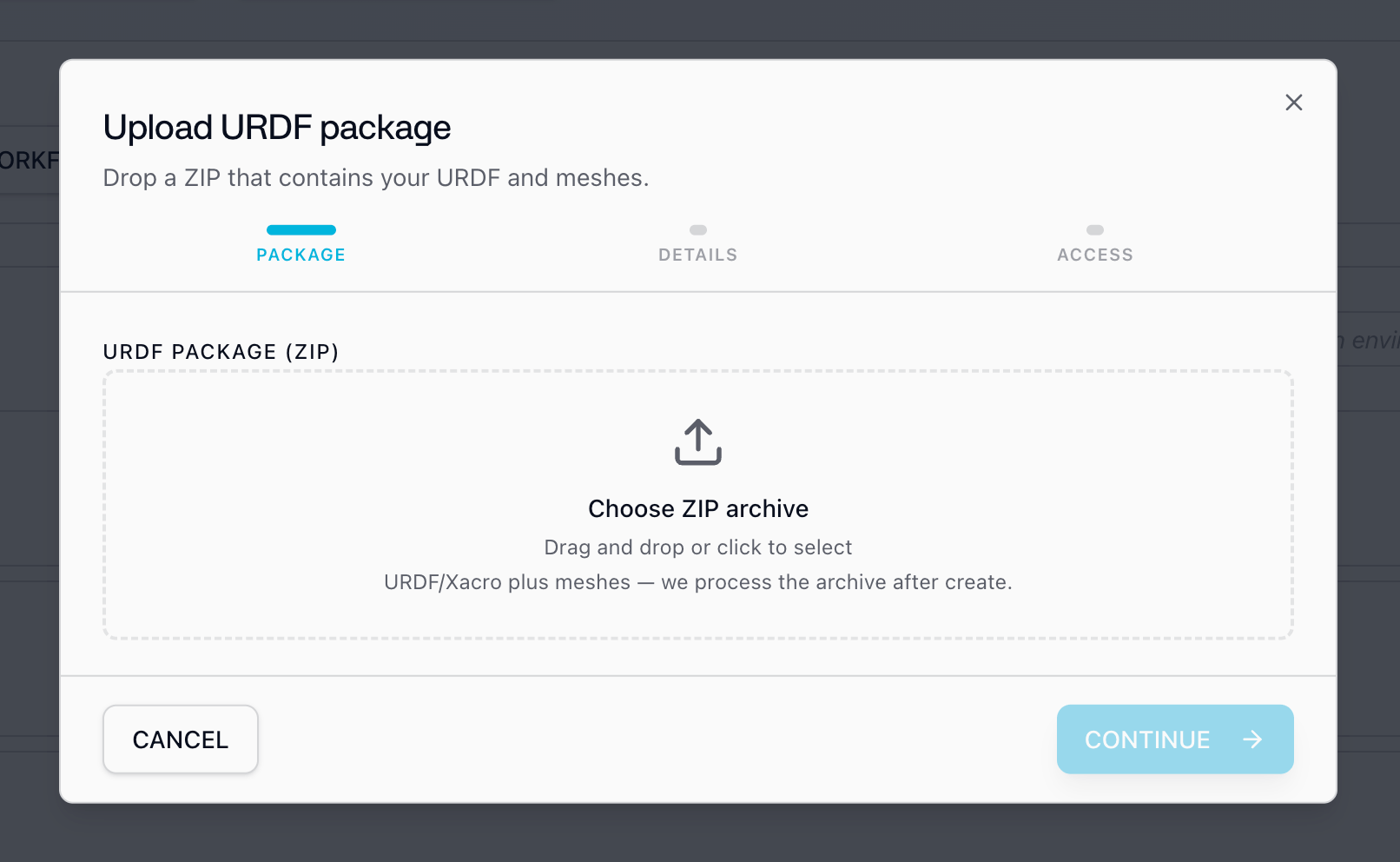

Package: upload your ZIP

On the Package step, drag and drop your ZIP into the URDF Package (ZIP) drop zone, or click to select it. Click Continue.Upload URDF package step
2

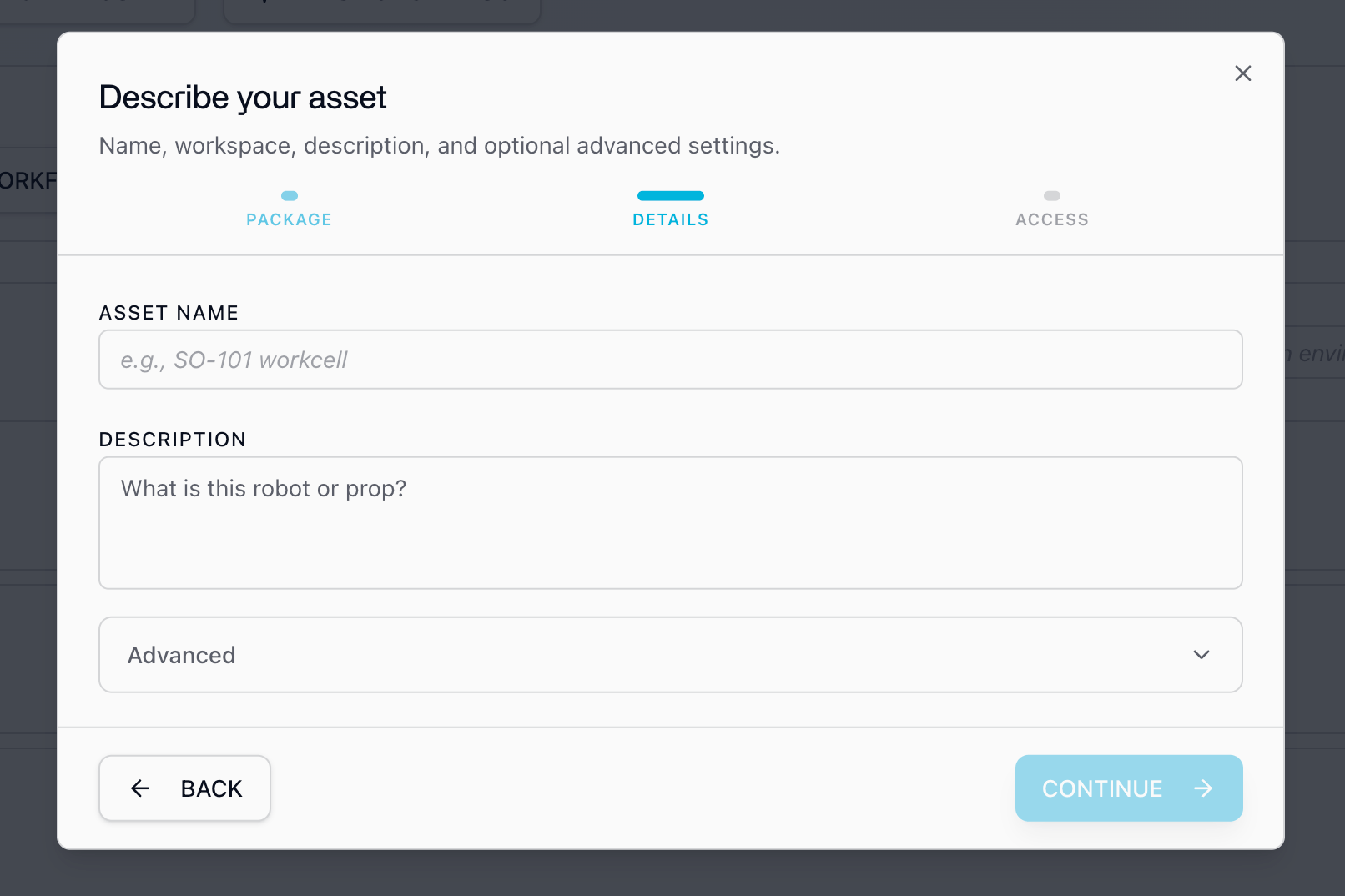

Details: describe your asset

Give the asset a clear name (for example, Acme Arm v1) and a short description.Describe your asset stepExpand Advanced for two optional fields:

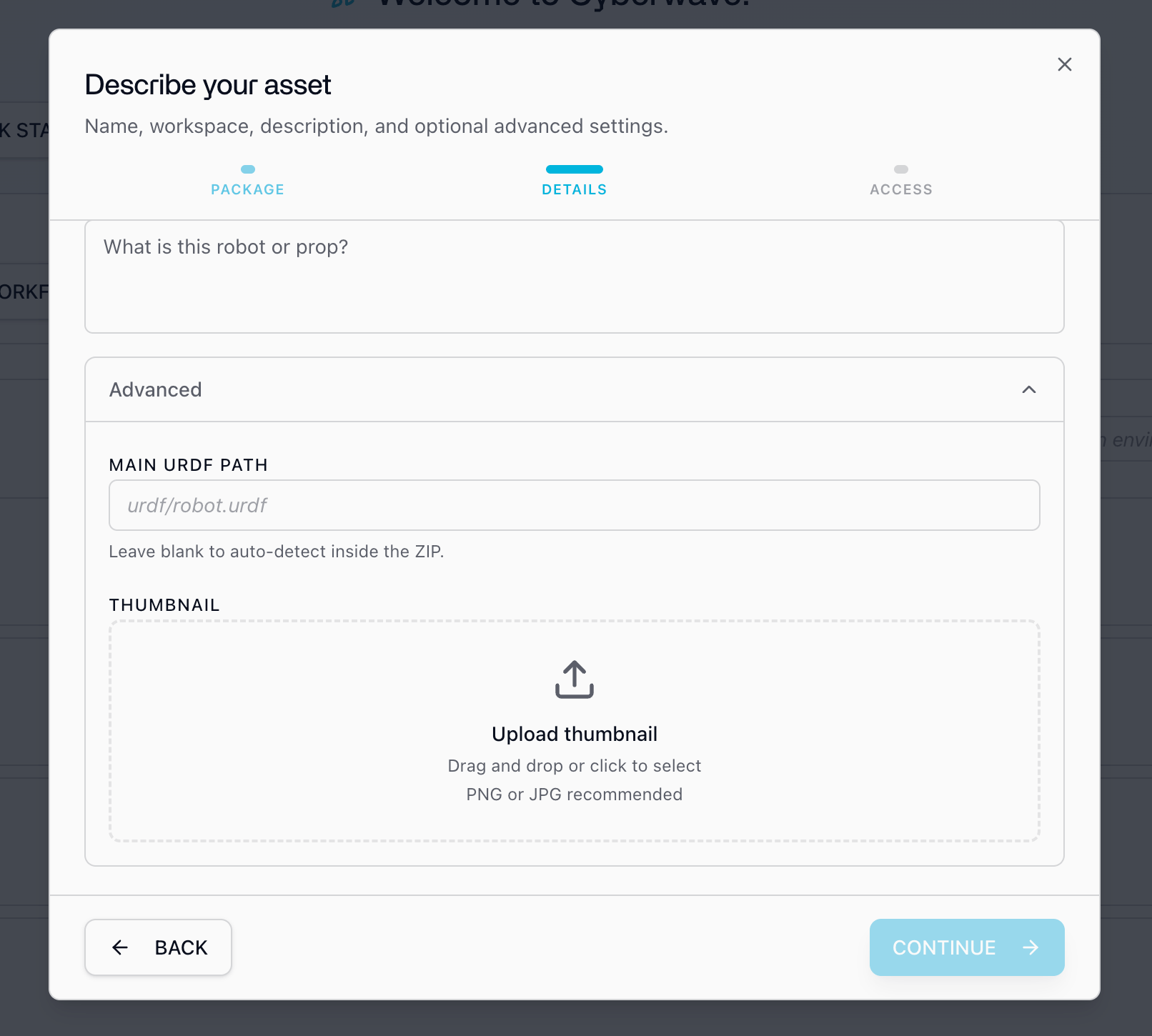

  • Main URDF path: the path to the main URDF inside the ZIP (for example, urdf/robot.urdf). Leave it blank to auto-detect, and set it only when the ZIP contains more than one URDF.
  • Thumbnail: an optional preview image (PNG or JPG) for the asset card. Advanced asset details
Click Continue.
3

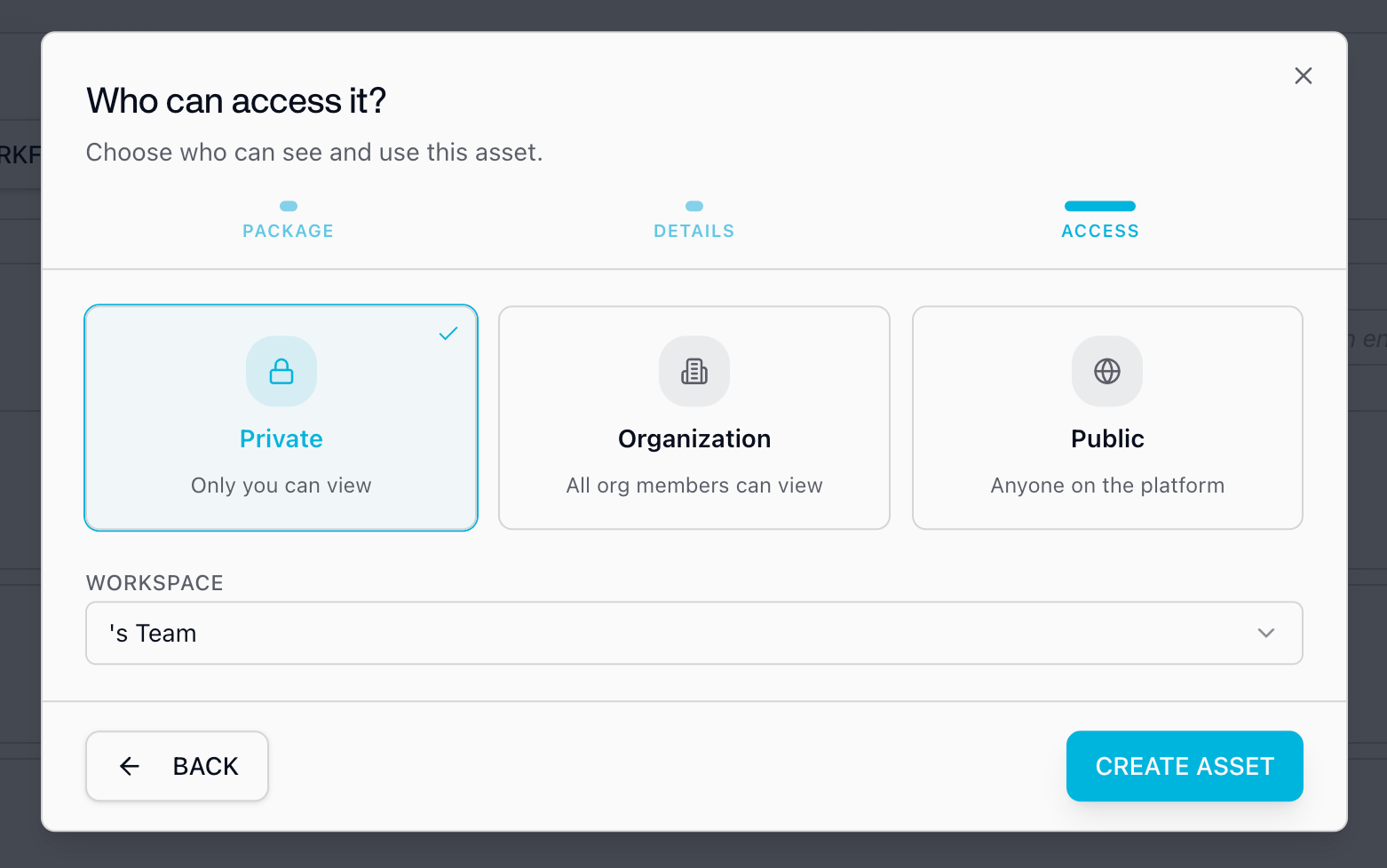

Access: choose visibility and workspace

Choose who can see and use the asset, then pick the workspace it belongs to.
VisibilityWho can view
PrivateOnly you
OrganizationAll members of your organization
PublicAnyone on the platform
Choose asset access stepClick Create Asset.
Cyberwave processes the archive. Once it’s ready, the asset is available to spawn twins from in the dashboard, the Python SDK, or the REST API. Note its registry_id (or slug, for example acme-corp/acme-arm-v1). Your driver manifest will target this id in Step 5.
Start Private while you iterate on the URDF and driver, then switch to Organization or Public when it’s ready to share. Visibility can be changed after creation.

Create an Asset (full reference)

More detail on URDF packaging and the upload wizard, including the REST and SDK paths.

​
Step 3: Spawn a digital twin

An asset is a reusable definition. A twin is a live instance of it inside an environment.
  1. In the dashboard, create a New Environment and give it a name like Acme Arm Lab.
  2. Click Add from Catalog in the left panel and search for the asset you just created (it appears in your workspace catalog).
  3. Add it and position it to roughly match where the real hardware sits.
The twin shows up in the environment but isn’t connected to anything yet. Note the twin’s UUID (visible in its properties panel); your driver receives this at runtime.
You now have a custom asset and a twin spawned from it. Everything from here is the driver: the bridge between this twin and your real hardware.

​
Step 4: Scaffold the driver

A driver is a Docker container that bridges your device’s native interface (ROS, serial, REST, gRPC, VDA5050, OPC UA, Modbus, or any other protocol) to Cyberwave’s MQTT layer. It publishes telemetry (joint states, odometry, camera frames, sensor data) up to the twin and turns dashboard, SDK, and workflow commands into actions on the device. Pick one of these starting points:
The Cyberwave Driver skill for Claude Code asks a few questions about your hardware and scaffolds a driver project: the Dockerfile, local dev setup, cw-driver.yml, and a working twin connection.Install the skill:
git clone https://github.com/cyberwave-os/driver-skill ~/.claude/skills/cyberwave-driver
Then in any Claude Code session:
/cyberwave-driver
The skill source is open source at cyberwave-os/driver-skill.

Writing Compatible Drivers (full guide)

The complete container contract, environment variables, MQTT catalog, and packaging.

​
Step 5: Declare your interface with cw-driver.yml

Add a cw-driver.yml at your driver repo root, next to the Dockerfile. This file is the contract between your hardware bridge, the platform APIs, the web UI, and the SDK. It lists which MQTT topics you use and which command strings you accept, so teleop overlays, SDK methods, and agents all line up with what the hardware actually does. Point registry_ids at the asset you created in Step 2, then declare the topics and commands your code will handle:
registry_ids:
  - acme-corp/acme-arm-v1   # the registry_id of YOUR asset
mqtt:
  schema_version: 1
  driver_family: python      # ros_cpp, python, android, ...
  joint:
    update:
      direction: both
      payload_schema_ref: JointStatesPayload
      description: Joint targets in, observed joint states out
  twin:
    command:
      direction: in
      payload_schema_ref: TwinCommandPayload
      description: Discrete and continuous commands for the arm
    telemetry:
      direction: out
      payload_schema_ref: TelemetryPayload
      description: Lifecycle and status JSON
  commands:
    supported:
      - stop                                 # discrete (one-shot)
      - { name: move_forward, continuous: true, rate_hz: 10 }  # stick-held
Each YAML path compiles to a flat MQTT topic. For example mqtt.joint.update becomes cyberwave/joint/{twin_uuid}/update, and mqtt.twin.command becomes cyberwave/twin/{twin_uuid}/command.
Only declare what you actually implement. Arm / joint-bus drivers should omit the WebRTC topics; camera video flows through child camera twins and the media service, not WebRTC topics on the arm twin.
Use the reference manifests as templates: the SO-101 arm for a joint bus plus command topic, or the UGV Beast for continuous locomotion. Copy the namespaces that match your robot and delete the rest.

​
Step 6: Implement the hardware bridge

Now wire your device’s native protocol to those topics. Edge Core injects these environment variables when it runs your container, so you can assume they’re always set:
VariableDescription
CYBERWAVE_TWIN_UUIDUUID of the twin this driver manages
CYBERWAVE_API_KEYAPI key scoped to this driver
CYBERWAVE_TWIN_JSON_FILEPath to a writable JSON file with the twin’s current state
CYBERWAVE_CHILD_TWIN_UUIDS(optional) Comma-separated UUIDs of attached child twins (e.g. cameras)
A driver does two things: subscribe to commands and turn them into hardware actions, and publish telemetry and state back up to the twin. The Python SDK gives you helpers for both:
from cyberwave import Cyberwave
import os, time

cw = Cyberwave(api_key=os.environ["CYBERWAVE_API_KEY"], source_type="edge")
twin_uuid = os.environ["CYBERWAVE_TWIN_UUID"]

# --- Publish observed joint states up to the twin ---
def on_hardware_state(names, positions):
    cw.data.publish("joint_states", {
        "ts": time.time(),
        "names": names,
        "positions": positions,
    })

# --- Subscribe to incoming commands and drive the hardware ---
def handle_command(cmd):
    if cmd["command"] == "stop":
        my_device.stop()
    elif cmd["command"] == "move_forward":
        my_device.move(cmd["data"].get("linear_x", 0.0))

# Wire handle_command to cyberwave/twin/{twin_uuid}/command, then run your loop:
while True:
    names, positions = my_device.read_joints()   # your native protocol here
    on_hardware_state(names, positions)
    time.sleep(0.05)
Publishing to the edge data bus with cw.data.publish(...) makes the data available to local worker containers and ML models with zero network overhead. Canonical channels include joint_states, frames/default, position, imu, and battery. You can also publish over MQTT directly for cloud consumers (frontend, telemetry, workflows).
Your driver must exit with a non-zero code when it can’t access required hardware (a missing /dev/video* device, a disconnected peripheral). That’s how Edge Core detects startup failures and triggers its restart logic.

Sensor data, MQTT topics & payloads

The complete list of MQTT topics and payload schemas: joint states, navigation, telemetry, and more.

​
Step 7: Register the manifest on your twin

Once cw-driver.yml is written, register it on your twin with the Python SDK. This compiles the YAML, persists it on the twin’s metadata, refreshes the catalog cache, and binds catalog-derived command methods on twin.commands.
from cyberwave import Cyberwave

cw = Cyberwave(api_key="...")
twin = cw.twin("your-twin-uuid")   # the twin from Step 3

# Compile cw-driver.yml, persist on this twin, re-bind catalog methods
twin.commands.set_schema("./cw-driver.yml")

# Inspect the catalog the UI and SDK now use
print(twin.commands.get_schema()["commands"]["supported"])

# Call any command you declared
twin.commands.stop()
twin.commands.move_forward(linear_x=0.3, duration=0.5, rate_hz=10)
Re-run set_schema whenever you change the manifest so teleop, agents, and SDK callers stay aligned with your driver.
set_schema updates this twin’s metadata, so you can iterate without changing a shared asset definition. When the driver is solid, you can apply the same metadata.mqtt to the asset so every new twin inherits it.

​
Step 8: Run the driver

Package the driver as a Docker image and run it. For local development, run it yourself with the same environment variables Edge Core uses:
docker run --rm \
  -e CYBERWAVE_TWIN_UUID="your-twin-uuid" \
  -e CYBERWAVE_API_KEY="your-api-key" \
  -e CYBERWAVE_DATA_BACKEND=zenoh \
  --device /dev/ttyUSB0 \
  acme-arm-driver:latest
For production, let Edge Core manage it. On the machine wired to your hardware, install the CLI and pair: Edge Core pulls and runs your driver image with the environment variables injected automatically, beside the device, on the robot, in the cloud, or on your laptop. Check progress with cyberwave edge logs.
Open the environment from Step 3. Your twin should show an online presence indicator, with joint states or telemetry updating live as the real hardware moves. If it doesn’t, check cyberwave edge logs and confirm the driver isn’t exiting on a hardware-access error.

​
Step 9: Use the platform features

With an asset and a driver registered, your twin exposes the same platform features as any catalog device. The same MQTT topics and command surface drive all of them:

Workflows

Chain perception, models, and motion into repeatable automations, low-code or in Python.

Replay & recording

Record episodes, scrub the timeline, and export datasets for training and review.

Teleoperation & remote takeover

Drive your hardware from anywhere and take over from an AI policy with one click.

Controllers & models

Assign keyboard, teleop, or trained AI policies as the controller for your twin.

Simulation

Validate behavior against the digital twin before it ever touches real hardware.

Digital twin

A live, synced virtual mirror of your hardware that the whole platform builds on.

​
